Medistrom Pilot Flex CPAP Portable Travel Battery

Introducing the new Pilot Flex - a revolutionary small Backup Power Supply & Portable Travel Battery for PAP Devices.

The Pilot Flex is compatible with:

• ResMed AirMini

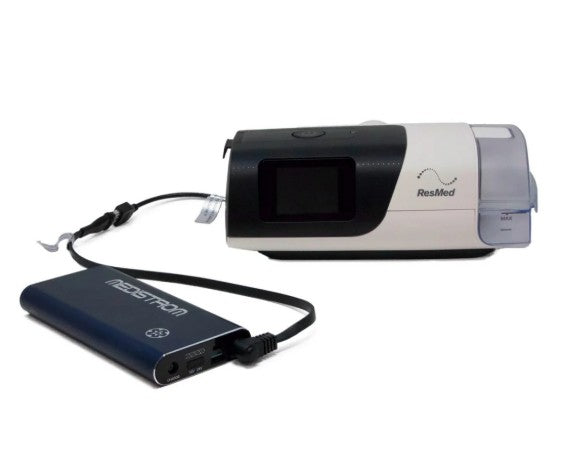

• ResMed AirSense 11*

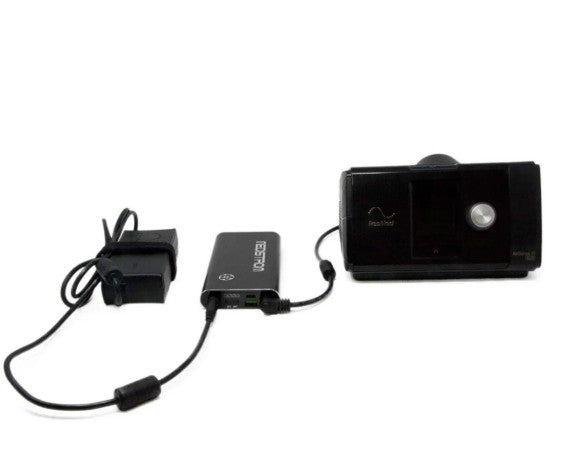

• ResMed AirSense 10*
• Löwenstein Medical Prisma SMART*
• Apex Medical iCH*
• Sefam S.Box*
• SmartMed iBreeze*
• 3B Medical Luna*

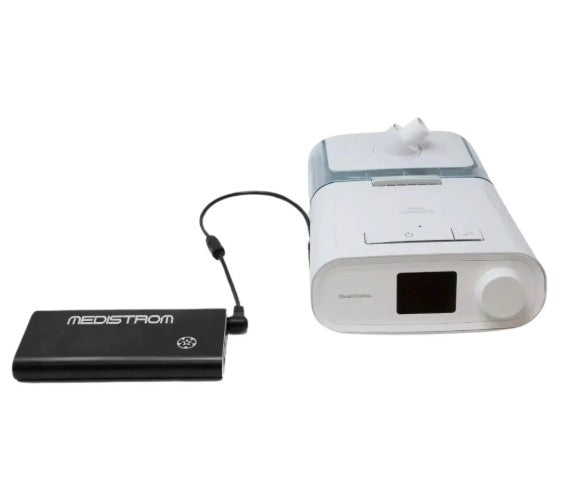

• Philips Respironics DreamStation I & II Series*
• Philips Respironics SystemOne S60*

*Cable kit sold separately

Backup Power Supply - The Pilot Flex is compatible with various 12V and 24V PAP devices. While using the Pilot Flex as a permanent backup power supply, you can rest assured that you won't be woken in the middle of the night to find that your CPAP machine is not running. If the power is interrupted at night, your CPAP machine will drive power from your Pilot Flex without interruption.

Travel Battery - Using the Pilot Flex as a Portable Travel PAP Battery will help you receive PAP therapy on the go. This includes remote locations where mains power is unavailable insituations such as camping, road trips, and air travel. Multiple Pilot Flex batteries can alsobe linked together to provide additional run-time.

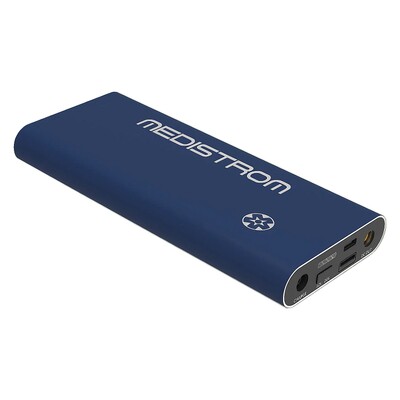

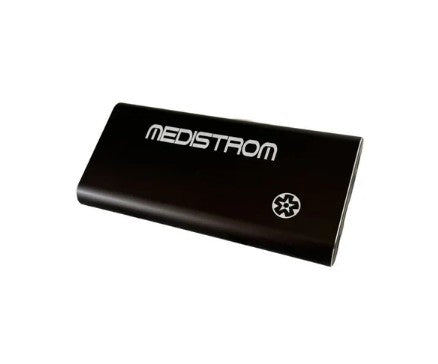

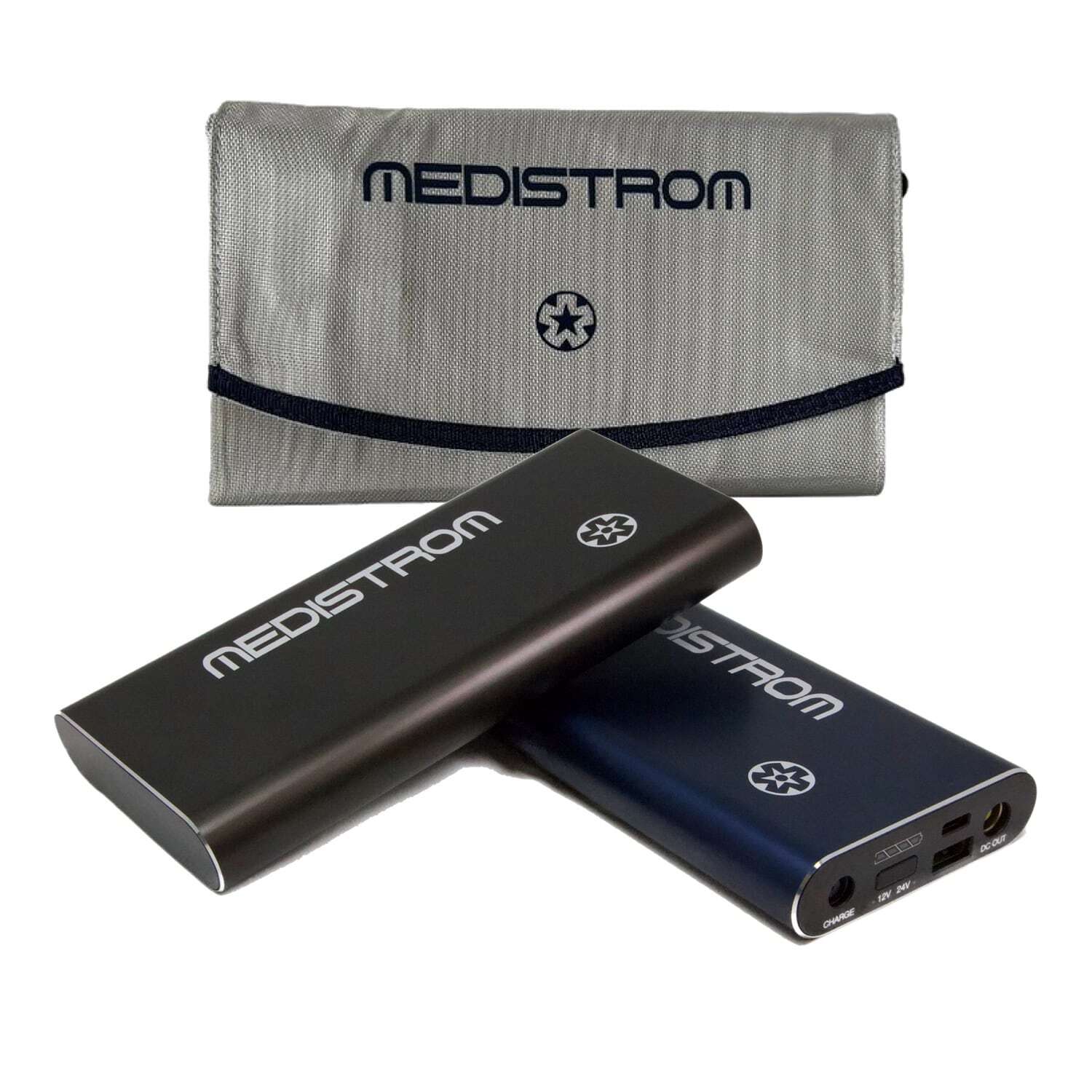

Additional Features - The Pilot Flex can also be used as a charging station for variouselectronic devices. With the built-in USB-A and USB-C ports, it can power a variety ofhandheld electronic devices such as mobile phones, tablets, and cameras. The Pilot Flex isavailable for purchase in two colors - Charcoal and Dark Navy.

What’s Included:

• Pilot Flex Battery

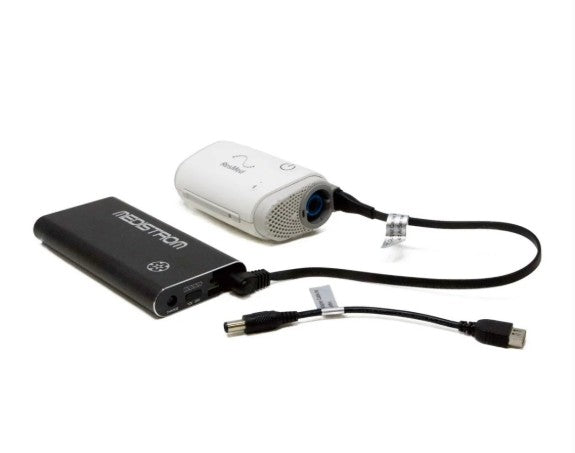

• Output Cable for ResMed AirMini
• Short Charging Adapter for ResMed AirMini
• Product Manual & Quick Start Guide (English, French, Spanish)

Specifications:

• Size: 16.7cm x 7.5cm x 2cm
• FAA Compliant
• Capacity: 98 Wh
• Cell Type: LG/Samsung Industrial grade genuine rechargeable lithium-ion cells
• Rated Input:
  • 12V-24V 60W;
  • USB-C: 5V-20V 45W Max
• Rated Output:
  • DC 12V/24V 60W Max;
  • USB-C: 5V-20V 45W Max;
  • USB-A: 5V-12V 18W Max
• Life Span: Over 500 full charge/discharge cycles
• Case: Aluminium
• Weight: 1.2 lbs (544g)
• Power Gauge: 4-stage Charge Level Indicator Lights
• Charging time: 2-3 hours (7-9 hours via the ResMed AirMini AC Adapter and 4-6 hours via a 45W USB-C charger)
• Warranty: 1 Year5Pilot

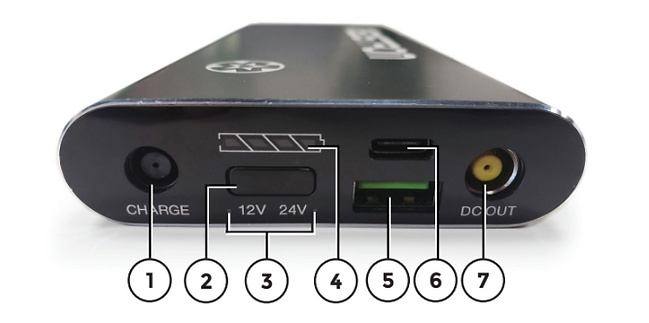

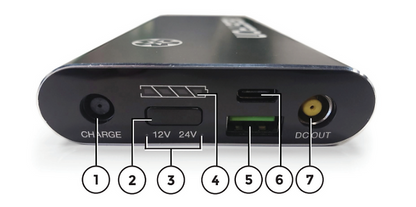

Control Panel Quick Guide

1.Charge Port: Plug the compatible AC adapter into this port (use the short charging adapter if required). Ensure that the AC adapter is plugged into the main power outlet. Once the battery is charging the 4 green Charge Level Indicator Lights will turn on.

2.Multi-Function Button: Pressing the button will turn the battery on and also show the battery's charge level. If the battery is in stand-by mode then press the button and the battery will turn back on

3.Voltage "ON" Indicator Light: A light will shine beside the 12V or 24V indicating the current output voltage of the battery

4.Green Charge Level Indicator Lights: When the battery is being charged, the lights will blink, and then shine a solid green showing the level of charge going from 1 to 4 lights.

5.USB-A Port: Can be used to charge handheld devices (just ensure that the voltage is compatible with the device you wish to charge). Once the device is connected you can press the Multi-Function Button to turn the battery on.

6.USB-C Port (Input and Output Capabilities): This port can be used to charge handheld devices in the output capacity and will supply a maximum of 45W. The Pilot Flex can also be charged through this port with a maximum input of 45W.

7.DC Out Port: This port is used to connect the battery to a compatible CPAP device.
